| Tempat asal: | Guangdong, Tiongkok |
|---|---|
| Nama merek: | BENRAY |
| Sertifikasi: | CE, ISO |
| Nomor model: | EKG-12 |
| Kuantitas min Order: | 1 set |
| Harga: | USD 500-1200 / Set |
| Kemasan rincian: | Karton kelas ekspor dengan pelindung busa tahan guncangan |
| Waktu pengiriman: | memiliki stok |
| Syarat-syarat pembayaran: | T/T, L/C, Western Union |
| Menyediakan kemampuan: | 500 Set per Bulan |
| Saluran: | 12 Saluran | Akuisisi memimpin: | 12 Memimpin Secara Bersamaan |
|---|---|---|---|
| Layar: | Layar Sentuh Berwarna 10,2 Inci | Resolusi: | 12bit / 1000Hz |
| Respon Frekuensi: | 0,05Hz - 500Hz | CMRR: | ≥100dB dengan Filter AC |
| Kalibrasi Tegangan: | 1mV ±3% | Impedansi Masukan: | > 50MΩ |
| Konstanta Waktu: | >3,2 detik | Toleransi tegangan: | ±500mV |
| Arus rangkaian masukan: | ≤0,1μA | Kebocoran saat ini pasien: | <10μA |
| Tingkat Kebisingan: | ≤15μVp-p | Modus Operasi: | Manual / Otomatis / Irama |
| penyaring EMG: | 25Hz / 35Hz / 45Hz / MATI | Filter Melayang: | 0,05 / 0,1 / 0,2 / 0,5Hz |
| Filter Akses Rendah: | 150Hz / 100Hz / 70Hz | Kepekaan: | 5/10/20mm/mV |
| Kecepatan kertas: | 12,5 / 25 / 50 mm/dtk (±2%) | Perekam: | Printer Termal Resolusi Tinggi, Kertas 216mm |
| Memori dalaman: | Lebih dari 400 Laporan EKG | Baterai: | Li-ion isi ulang bawaan 14.8V / 4000mAh |
| Catu Daya: | 100-240V, 50/60Hz AC/DC | Antarmuka Data: | USB, RS232, LAN, Kartu SD |
| Keamanan: | Perlindungan Defibrilasi, Deteksi Alat Pacu Jantung | ||
| Menyoroti: | 12 Channel Simultaneous ECG Acquisition,10.2 Inch Color Touchscreen Display,Portable Defibrillation Protection ECG Machine |
||

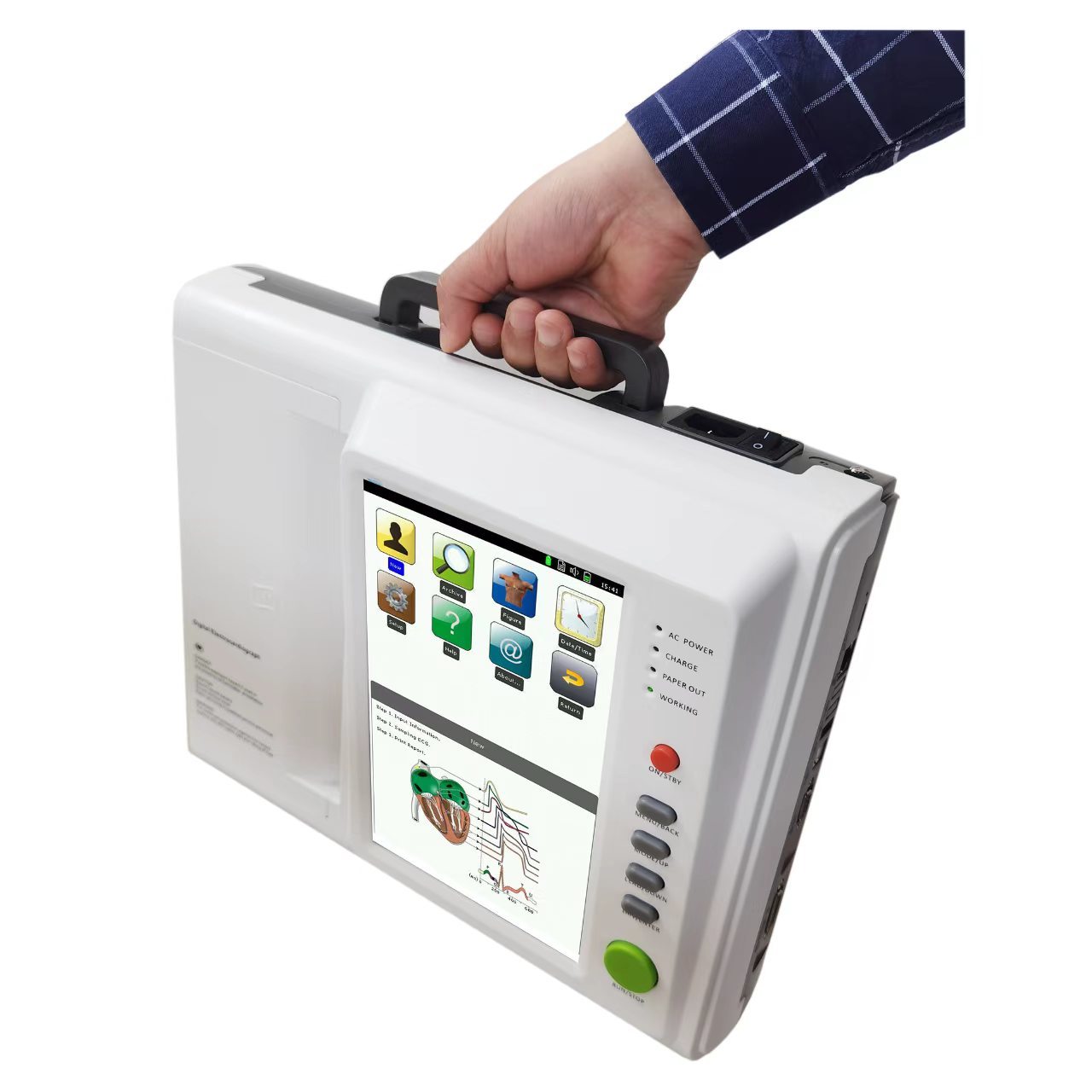

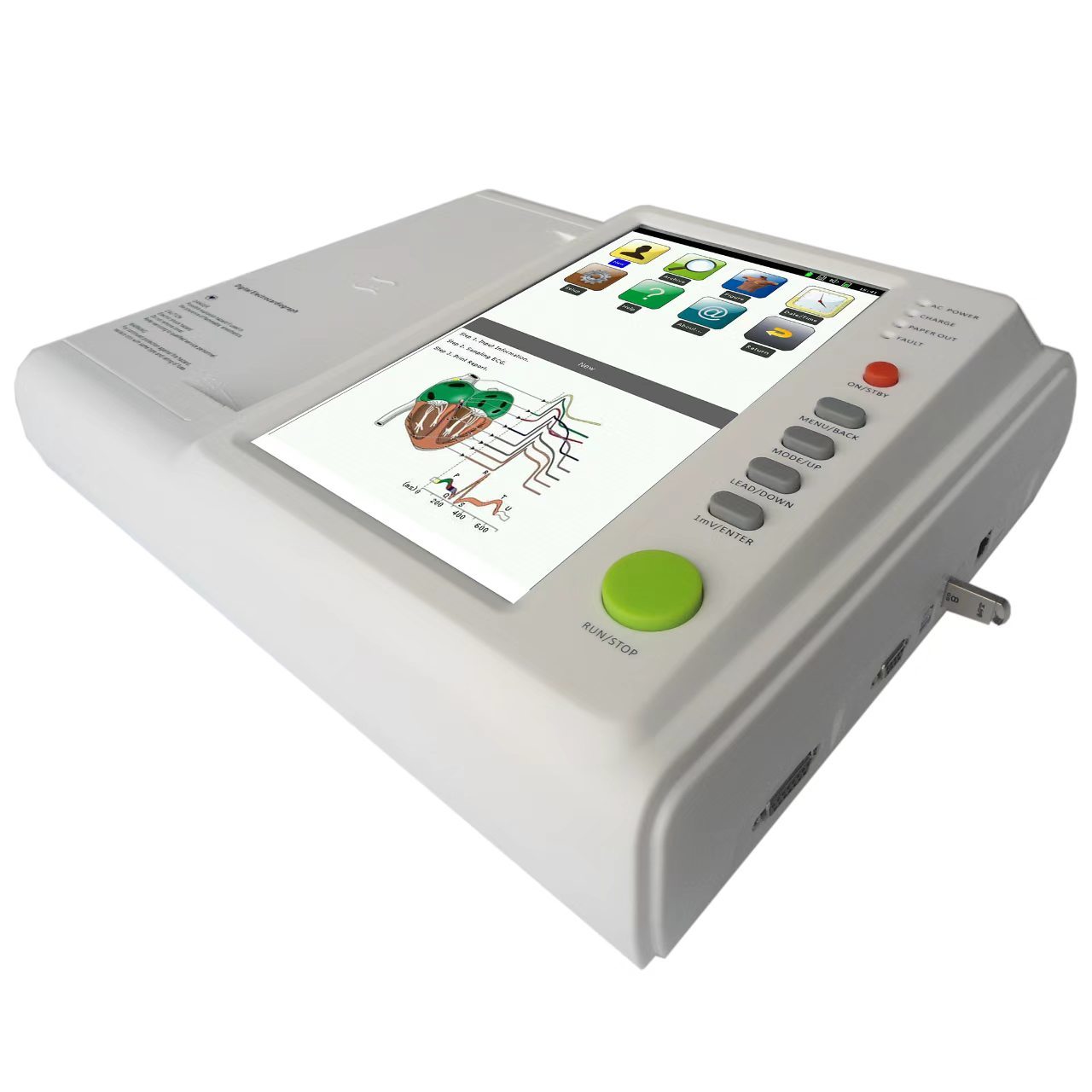

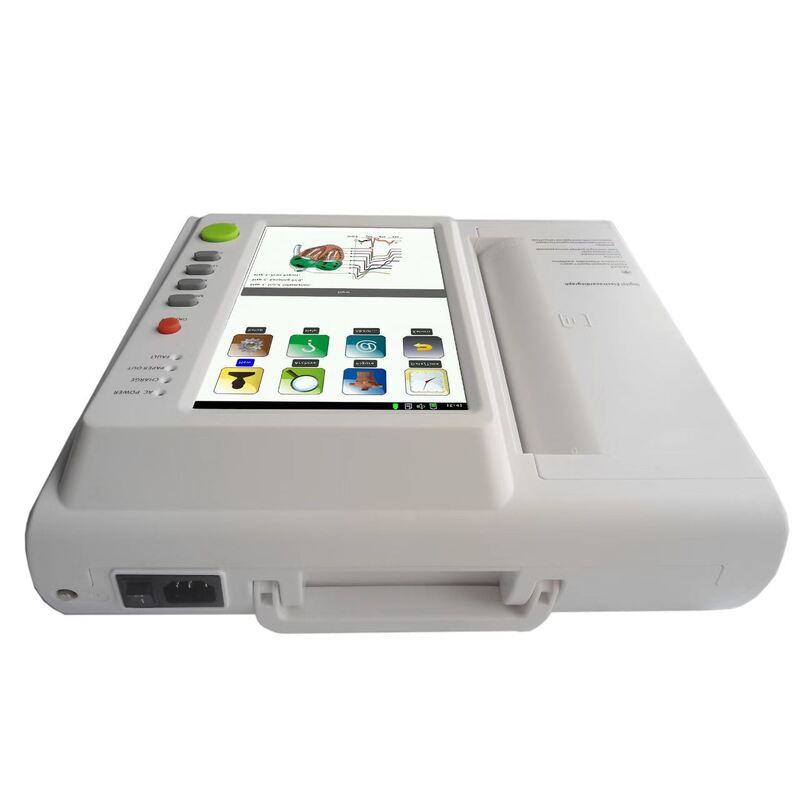

ECG-12 12 Channel Portable ECG Machine ECG-12 is a 12 channel portable electrocardiograph designed for accurate and efficient cardiac assessment. It acquires 12 leads simultaneously and displays the full 12 channel ECG waveforms on a 10.2 inch color touchscreen. With built-in thermal printer, rechargeable battery, defibrillation protection and pacemaker detection, it suits hospitals, clinics, emergency rooms and health screening centers. Key Features Simultaneous acquisition
